Introducing the MTH Pumps DC10, a 12 Volt DC Washdown pump meticulously crafted to excel in a range of applications. Engineered to cater to OEM, chemical processing, septic service, pumper, and marine sectors requiring the prowess of a DC motor, this pump is purpose-built for versatility.

Available in a robust all-cast stainless steel construction and featuring a dry-run mechanical seal, the DC10 is fully customizable to meet your precise specifications. Its pull-from-rear design ensures effortless servicing without any disruption to your piping setup, enhancing convenience and efficiency.

The inclusion of a stainless steel impeller further amplifies its performance, delivering optimal results in various operational scenarios. It's important to note that these pumps are not self-priming and necessitate a flooded suction setup for operation. The accompanying motor boasts a one-hour duty rating and comes equipped with a stainless steel shaft for added durability.

The DC10 shines with its 12 Volt DC washdown duty motors that are meticulously engineered to withstand challenging washdown and wet environments. While engineered for washdown duty, it's essential to mention that these units are not suitable for submersion in liquids.

The MTH Pumps DC10 is your solution for reliable and efficient pumping needs, ensuring performance that meets and exceeds expectations.

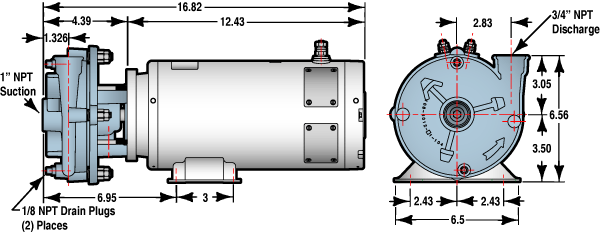

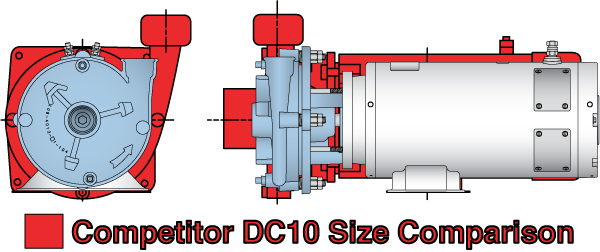

Dimensional Comparison

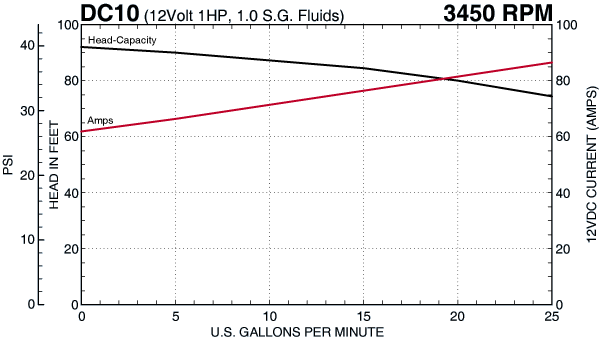

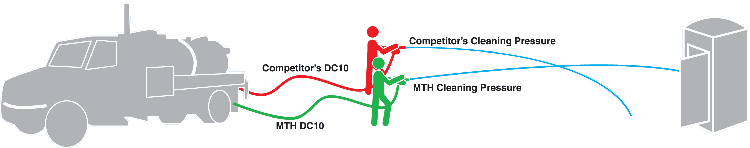

Performance Comparison

Design Features

Impeller Design
DC Series semi-open impellers allow the pump to pass small solids and fibrous material while close running tolerances maintain high efficiency and performance. Impellers are pre-trimmed to be non-overloading to the pump and motor size indicated.

Mechanical Seal Box
The large seal chamber provides a wide fluid passage area for maximum cooling of the seal faces and allows debris and gases to be flushed away.

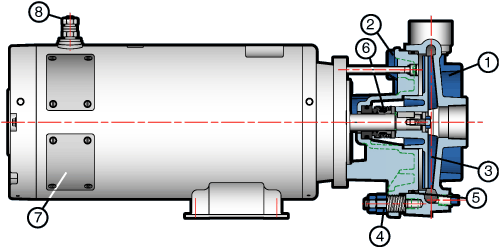

Diagram & Specs

Construction Materials

Limitations

* Consult factory for pressures over 145 psi
